Our Products


UPVC TELEKOM DUCT 107MM

ZER uPVC Telekom Duct are manufactured in strict accordance with MS 1034, and all pipes bear our SIRIM trademark (license number PZ 1501). By using 100% virgin material, combined with our ISO9001-certified production process, we are able to ensure that ZER uPVC Telekom Duct meet all our customers’ requirements of durability and quality requirements. ZER uPVC Telekom Ducts are used in the trunking of telecommunication local and international customers. When used in conjunction with our HDPE sub-ducts, the ZER uPVC Telekom Duct form a complete telecommunication ducting system for the protection of fibre-optic cables.

DIMENSIONS IN MILLIMETERS
D (DIAMETER) T
(THICKNESS)
S
(DIAMETER)
M
(DIAMETER)
E
(DIAMETER)
RANGE OF
MEAN DIA
OVALITY
PROVISO
MAX.
OF
MEAN

MIN
OF
MEAN
MAX. DIA.
(SINGLE READING)
MIN. DIA
(SINGLE
READING)
MAX MIN MAX MIN MAX MIN MAX MIN
108 107 109 106 3 2.6 107 106 109 108.5 109.5 109

HDPE CORRUGATED SUB-DUCT FOR OPTICAL FIBRE CABLES

ZER HDPE Corrugated Sub-Ducts are manufactured in strict accordance with Telekom Malaysia Specification Number D 0016. All pipes manufactured by Zer Plastic Sdn Bhd are made from 100% virgin material using our ISO 9001 certified production process. ZER HDPE Sub-Duct can be supplied with a pre-installed nylon string to facilitate installation of a draw rope or the optical fibre cable itself.

As a result of internal and external corrugation, our ZER HDPE Sub-Duct has an extremely low coefficient of friction, enabling simple installation of the sub-duct as well as the fibre-optic cable itself. ZER HDPE Sub-Duct can be combined with our PVC Ducts to provide a comprehensive solution for the installation of telecommunication fibre-optic cables. Zerplastic is able to supply HDPE Corrugated Sub-Duct in various nominal diameters, as per the requirements of the application.

Description
Dimension Dimension
Outside Diameter 32 mm 40 mm
Internal Diameter 26 mm 34 mm
Corrugated Thickness 3 mm 3 mm
Wall Thickness 1 mm Average 1 mm Average

HDPE SMOOTH WALL SUB-DUCT FOR OPTICAL CABLES

Zer HDPE Smoothwall Sub Duct is made from high quality High Density Polyethylene and manufactured to facilitate smooth installation of fiber optic cables.

Zer HDPE Smoothwall Sub Duct can be supplied with co-extruded stripes for identification purpose and in various colors according to customer requirements.

Zer HDPE Smoothwall Sub Duct can be supplied in various lengths, in drum or coil form and with pre-installed rope if required..

Outside Dimension
Inside Dimension Wall Thickness
40 mm 33 mm 3.5 mm

HDPE TUBE FOR OPTICAL CABLES - MICRODUCT

Zer Microduct is made from High Density Polyethylene for protection of Fiber Optic cables. Zer Microduct can be direct buried or installed within duct as required.

Zer Microduct is manufactured with an internal low friction lining to facilitate the installation of blown fibre and can also be supplied with a pull-string as required. Zer Microduct comes in a range of sizes and diameters to suit the application at hand.

Outside Dimension
Inside Dimension Wall Thickness
10 mm 6 mm 2 mm
12 mm 8 mm 2 mm

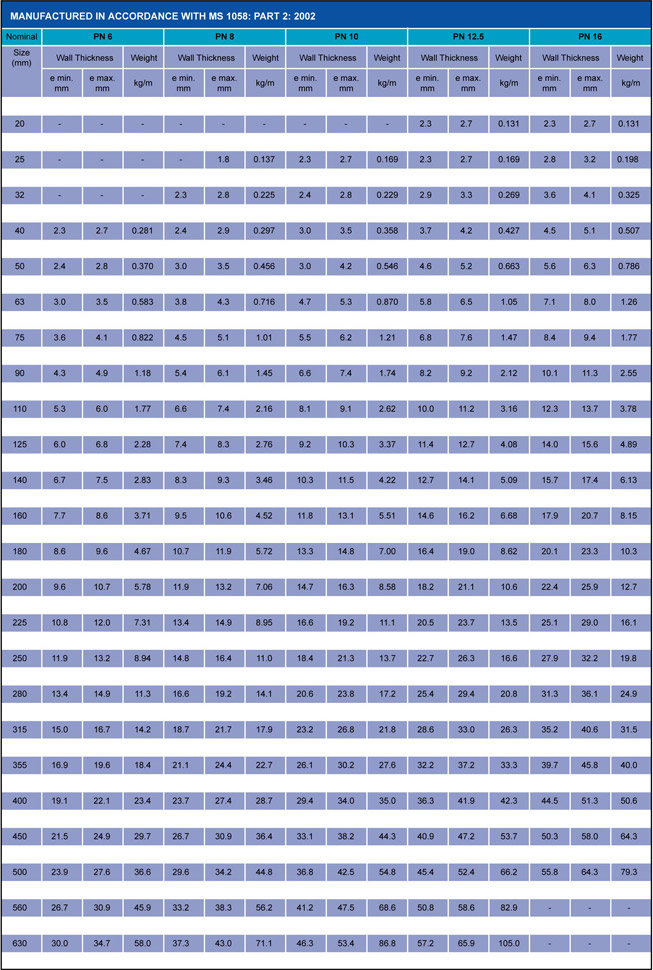

HDPE PIPE FOR WATER SUPPLY

ZER HDPE pipes are manufactured in strict accordance to MS1058, and all pipes produced within our production plan bear the SIRIM trademark (license number PZ 1505).

ZER HDPE pipes have been used extensively as water pipes in high-pressure applications. In addition, the HDPE pipes can also be used for various industrial and cabeling solutions. ZER HDPE pipes are tough with a smooth internal bore, and can be easily joined using a coupling or via butt fusion method.


Click here for full specifications

UPVC PRESSURE PIPE FOR COLD WATER SERVICES WITH OPTIONAL RUBBER RING

ZER uPVC Pressure Pipes are manufactured in strict accordance with MS 628 and MS 923 (where applicable), and all pipes manufactured by Zer Plastic Sdn Bhd carry the SIRIM trademark (license number PZ 1502 & PZ 1503).

ZER uPVC Pressure Pipes are exceptionally resistant to attack from high concentrations of acid, and are immune to all types of corrosion experienced in underground piping systems. The smooth bore of ZER uPVC pipes provide minimal resistance to flow, resulting in excellent flow characteristics with negligible flow loss. Incidence of leakage is impossible with proper installation. ZER uPVC pipes impart neither taste nor odour and being non-toxic, are ideally suited for portable water supply.

The advantages of ZER pressure pipes are:

  • Easiest method of installation. ZER uPVC pipes are the most efficient, cost-effective and error-free method of laying water lines, especially for larger diameter pipes.
  • High impact and mechanical strength.
  • High flow capacity resulting from smooth internal bore
  • Resistance to chemicals and abrasion during installation and working life.
  • Flexible. The usage of a rubber ring system will enable the water line to absorb ground strain and yield to installation stress, while maintaining the integrity of the entire water system at the same time.

Click here for full specifications

SOIL, WASTE, VENTILATING AND UNDERGROUND DRAINAGE PIPES

ZER uPVC Soil, Waste, Ventilating and Underground Drainage pipes are manufactured in strict accordance with the appropriate SIRIM product standards using our ISO 9001 certified production process. Zer Plastic manufactures the entire range of uPVC pipes for internal sanitary systems and are able to guarantee the complete integrity of our piping against leaks, thereby assuring tremendous savings for developers, and complete confidence by the eventual home owner.

All ZER uPVC pipes provide the following advantages:

  • Ease of installation and handling
  • Excellent stiffness and impact resistance
  • Resistance to corrosion
  • Non-toxic and resistant to chemical attacks or fungus
  • Smooth internal bore to ensure minimal flow loss and prevent build-up of deposits & scaling
  • Ease of jointing when using uPVC joints & fittings

Click here for full specifications

HDPE DUCT FOR TELECOMMUNICATION APPLICATION

Zer HDPE Smoothwall Duct is made from high quality High Density Polyethylene and manufactured to facilitate smooth installation of fiber optic ducting. The product is specially designed for use in Horizontal Directional Drilling applications.

The duct can be supplied with co-extruded stripes for identification purpose and in various lengths or coil form. Zer HDPE duct is designed to withstand the stress of trenchless installation and can be used in conjunction with Zer HDPE Sub-Duct or Zer HDPE Corrugated Sub-Duct.

Standard Dimension for HDPE Duct
Outside Dimension
Wall Thickness
110 mm 8.1 mm
